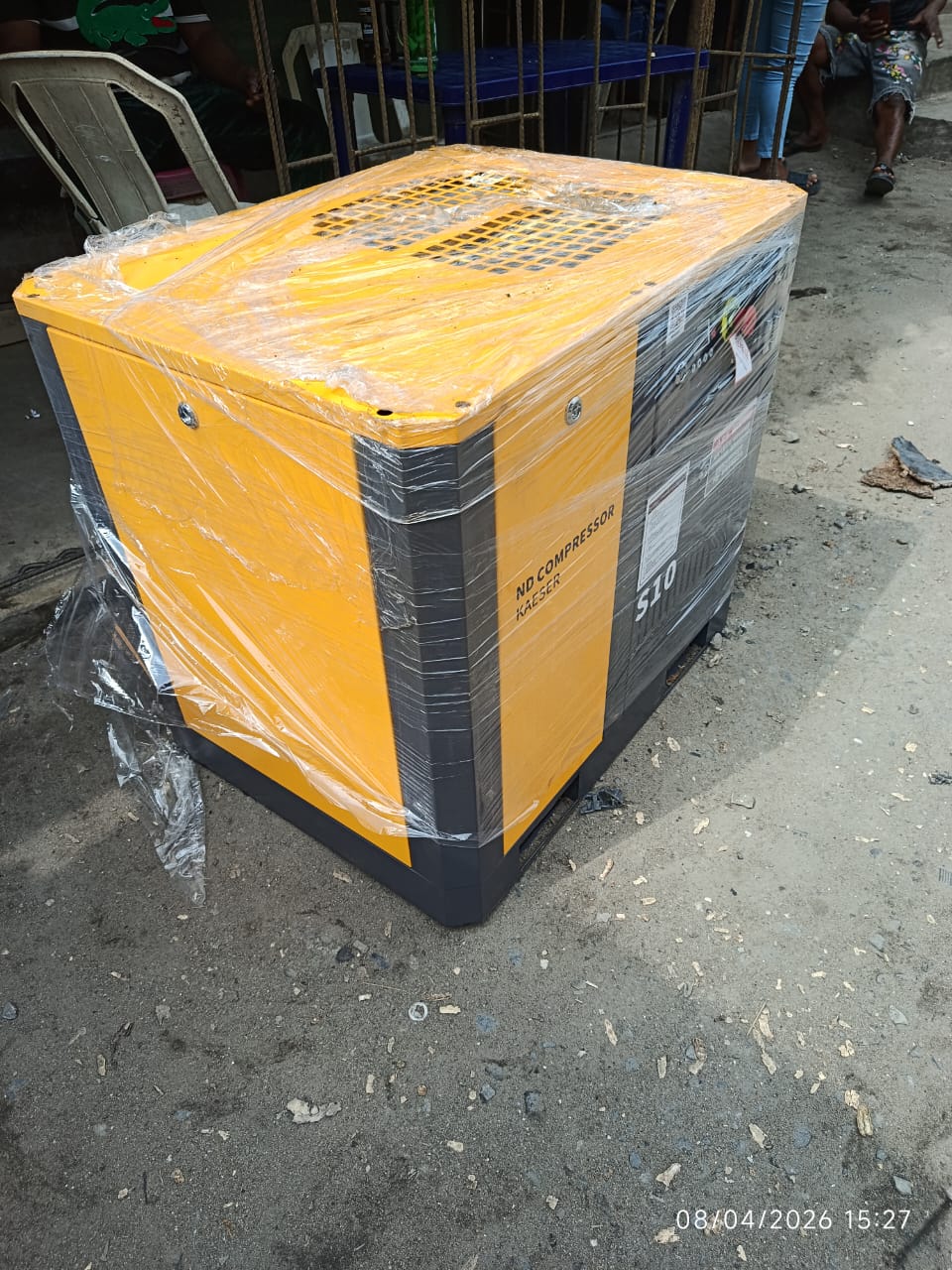

Kaeser S10 Industrial Rotary Screw Air Compressor
Kaeser S10 Industrial Rotary Screw Air Compressor
Kaeser S10 Industrial Rotary Screw Air Compressor
Kaeser S10 Industrial Rotary Screw Air Compressor
1 / 4

⚠ Images are for illustration. Contact us to confirm availability and exact specifications before ordering.

SKU: SKU063 · Brand: ND COMPRESSOR
MANUFACTURING EQUIPMENTS ✔ In Stock

Kaeser S10 Industrial Rotary Screw Air Compressor

₦2,600,000

🛠️ Primary Uses & Applications Pneumatic Machinery Power: Driving heavy factory automation equipment, robotic arms, and packaging lines continuously. Industrial Sandblasting & Coating: Supplying stable, high-volume airflow to blast abrasive media or spray industrial finishes. Automotive Repair Shops: Powering multiple high-impact air tools, tire changers, and pneumatic lifts simultaneously. 📊 Key Machine Components Control Display Interface: The small digital module featuring physical navigation buttons on the upper console to track pressure, running hours, and operational status. Emergency Stop Button: The prominent red mushroom button with a yellow surround, designed to instantly shut down the machine in a hazardous situation. Forklift Access Ports: Integrated structural slots at the very bottom base of the cabinet, allowing safe, balanced lifting and relocation. Sound-Attenuated Enclosure: The entire yellow-and-grey steel casing is insulated to dampen mechanical noise, keeping the surrounding workspace significantly quieter. ✨ Core Structural Features Continuous 100% Duty Cycle: Unlike household piston compressors that require frequent cool-down rests, rotary screw units are designed to run 24/7 under heavy loads. Compact Footprint: The box-cabinet configuration packs the air end, electric drive motor, oil separation system, and cooling fans into a tight space. Advanced Lubrication System: Utilizes dedicated oil injection to simultaneously lubricate internal rotors, seal compression chambers, and absorb heat.

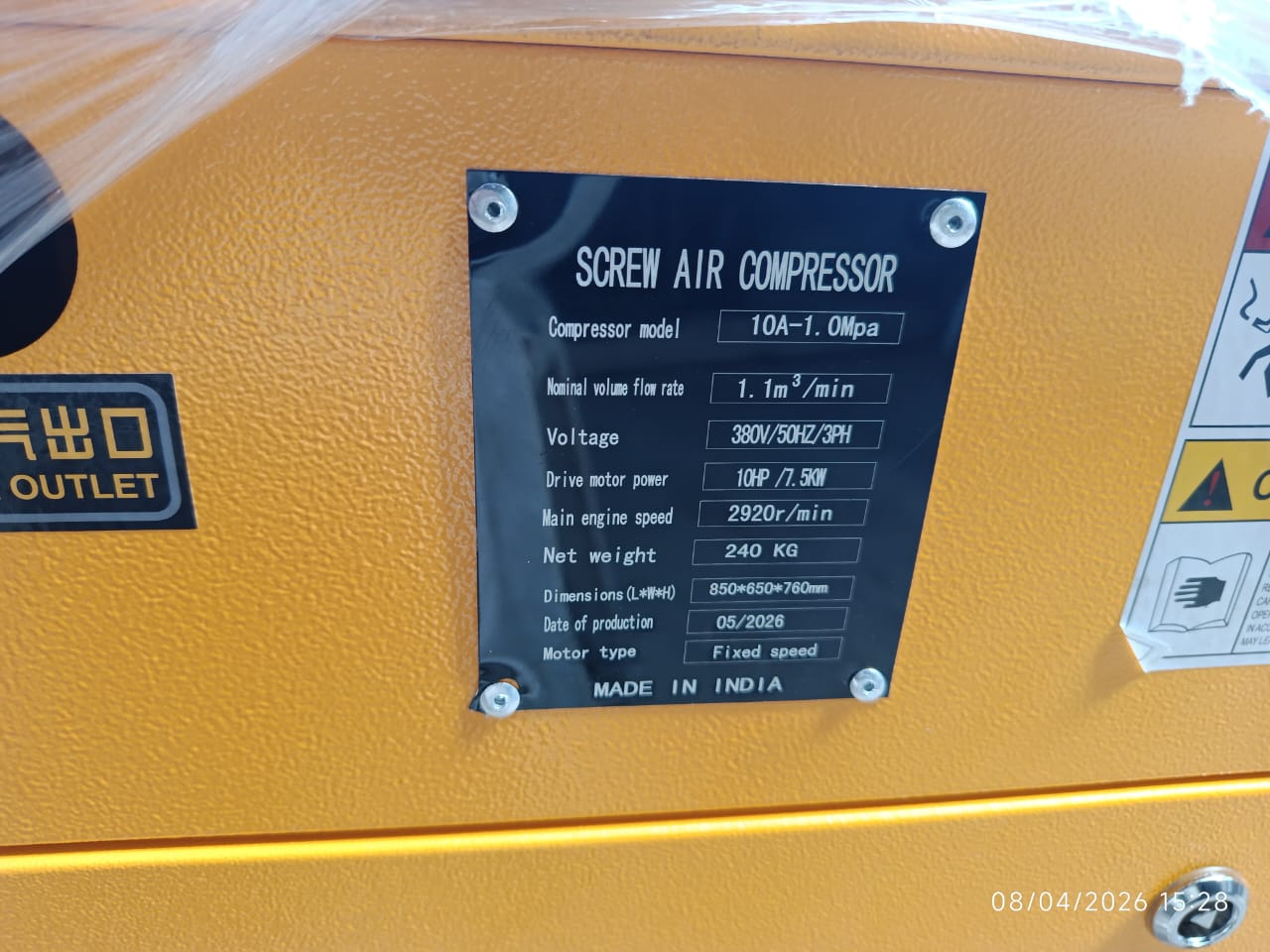

Specifications
Compressor Model: 10A-1.0Mpa
Nominal Volume Flow Rate: 1.1 m³/min, 38.8 CFM
Voltage & Power Configuration: 380V / 50HZ / 3PHASE
Drive Motor Power: 10HP / 7.5KW. (Equipped with a 10 Horsepower / 7.5 Kilowatt electric motor).
Main Engine Speed: 2920 r/min
Motor Type: Fixed speed (Operates at a single constant speed; it does not utilize a Variable Speed Drive / VSD inverter).
Net Weight: 240 KG
Dimensions (L × W × H): 850 × 650 × 760mm
